AC Motor Running Capacitor
AC Motor Running Capacitor
Product Name: Square, Round Type
Application: Use on motors, electric fans, ventilator fans, fluorescent lamps, mercury, lamps, pump, air conditioners, washing machines and so on.
Specification:
Dielectric Polyester Film
Polypropylene Film
Electrodes Vacuum evaporated metal
Coating Encapsulated in flame retardant (UL94V-0) plastic case and epoxy resin end seal.
Leads Radial leads of tinned wire
Terminals
Climatic Category MPE wet type: 25/70/21
MPP wet type: 25/85/21
Capacitance versus rated voltage (UR) 250VAC 1uF ~ 16uF
350VAC 1uF ~ 14uF
400 VAC 1uF ~ 10uF
450 VAC 1uF ~ 8uF
Capacitance Tolerance J=±5%, U=+10/-5%, K=±10%
Dissipation Factor (Tangent of Loss) MPE below 0.3%
MPP below 0.1% (at 20°C, 1KHz)
Voltage Proof Between terminals: 1.5UR 1 min.
Between terminals and case: 2000V.AC
Insulation Resistance C≤0.33uF, IR≥15,000 MΩ
C>0.33uF, IR≥ 5,000 MΩ/uF
(1 minute at 20°C and RH≤65%)

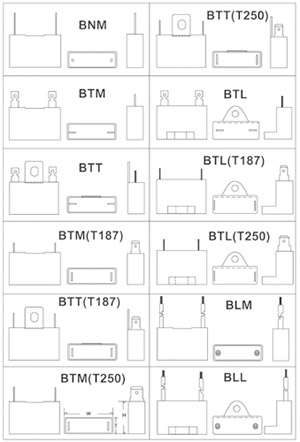

Terminals for Square type:
BLM Square, cooper wire
BLM Square, lead wire
BLT Square, lead wire, metal strip
BLL Square, lead wire, plastic bracket
BTM Square, soldering terminals
BTM (T187 or T250) Square, fast-on #187 or #250 terminals
BTT Square, soldering terminals, metal strip
BTT (T187 or T250) Square, fast-on #187 or #250 terminals, metal strip
BTL Square, soldering terminals, plastic bracket
BTL (T187 or T250) Square, fast-on #187 or #250 terminals, plastic bracket
BUM (U187 or U250) Square, fast-on U187 or U250 terminals
BUT (U187 or U250) Square, fast-on U187 or U250 terminals, metal strip
BUL (T187 or T250) Square, fast-on U187 or U250 terminals, plastic bracket
Dimensions:
W V
Cap.
250VAC
350VAC
400VAC
450VAC
uF
W
T
H
P
W
T
H
P
W
T
H
P
W
T
H
P
1.0
32
10.5
21
27.5
32
10.5
21
27.5
32
12
22
27.5
38
13
23
33
1.5
32
10.5
21
27.5
32
13
24
27.5
38
13
23
33
38
17
26
33
2.0
32
10.5
21
27.5
38
13
23
33
38
15
24
33
38
17
26
33
2.5
32
12
22
27.5
38
15
24
33
38
17
26
33
38
19
29
33
3.0
32
13
24
27.5
38
17
26
33
38
19
29
33
50
20
30
43
3.5
38
13
23
33
38
17
26
33
38
19
29
33
50
20
30
43
4.0
38
13
23
33
38
19
29
33
50
20
30
43
51
22
32
43
4.5
38
15
24
33
38
19
29
33
50
20
30
43
51
22
32
43
5.0
38
15
24
33
50
20
30
43
51
22
32
43
51
22
32
43
5.5
38
17
26
33
50
20
30
43
51
22
32
43
51
30
40
43
6.0
38
17
26
33
50
20
30
43
51
22
32
43
51
30
40
43
8.0
38
19
29
33
51
22
32
43
51
30
40
43
51
30
40
43
8.0
48
17
27.5
43












10.0
50
20
30
43
50
28
38
43
51
30
40
43




12.0
50
20
30
43
51
30
40
43








14.0
51
22
32
43
51
30
40
43








16.0
51
22
32
43

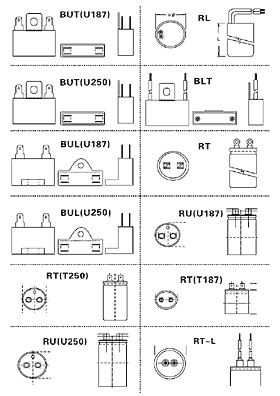

Terminals for Round type:
RL Round, lead wire
RT Round, soldering terminals
RT (T110 or T187 or T250) Round, fast-on #110 or #187 or #250 terminals
RU (U187 or U250) Round, fast-on U187 or U250 terminals
RT-L Round, soldering terminals add lead wire
Dimensions:
W V
Cap.
250VAC
350VAC
400VAC
450VAC
uF
D
L
D
L
D
L
D
L
2
22
44
25
44
25
62
30
62
3
22
44
25
44
30
62
35
62
3.5
25
44
25
44
30
62
35
62
4
25
44
25
62
30
62
35
62
4.5
25
44
25
62
35
62
40
62
5
25
44
30
62
35
62
40
62
6
25
44
30
62
35
62
45
62
7
25
62
30
62
40
62
45
62
8
25
62
30
62
40
62
51
62
9
25
62
35
62
35
120
40
120
10
25
62
35
62
35
120
40
120
12
30
62
35
62
35
120
45
120
13
30
62
40
62
45
120
51
120
14
30
62
40
62
45
120
51
120
15
30
62
40
62
45
120
51
125
16
30
62
45
62
45
120
51
125
17
35
62
45
62
45
120
56
125
18
35
62
45
62
45
125
56
125
19
35
62
51
62
45
125
56
125
20
35
62
51
62
45
125
56
125
21
35
62
51
62
45
125


25
40
62
40
120
51
125


30
40
62
40
120
51
125


35
45
62
45
120
56
125


40
45
62
51
120




50
40
120






60
45
120
